E-115 Tracktronic

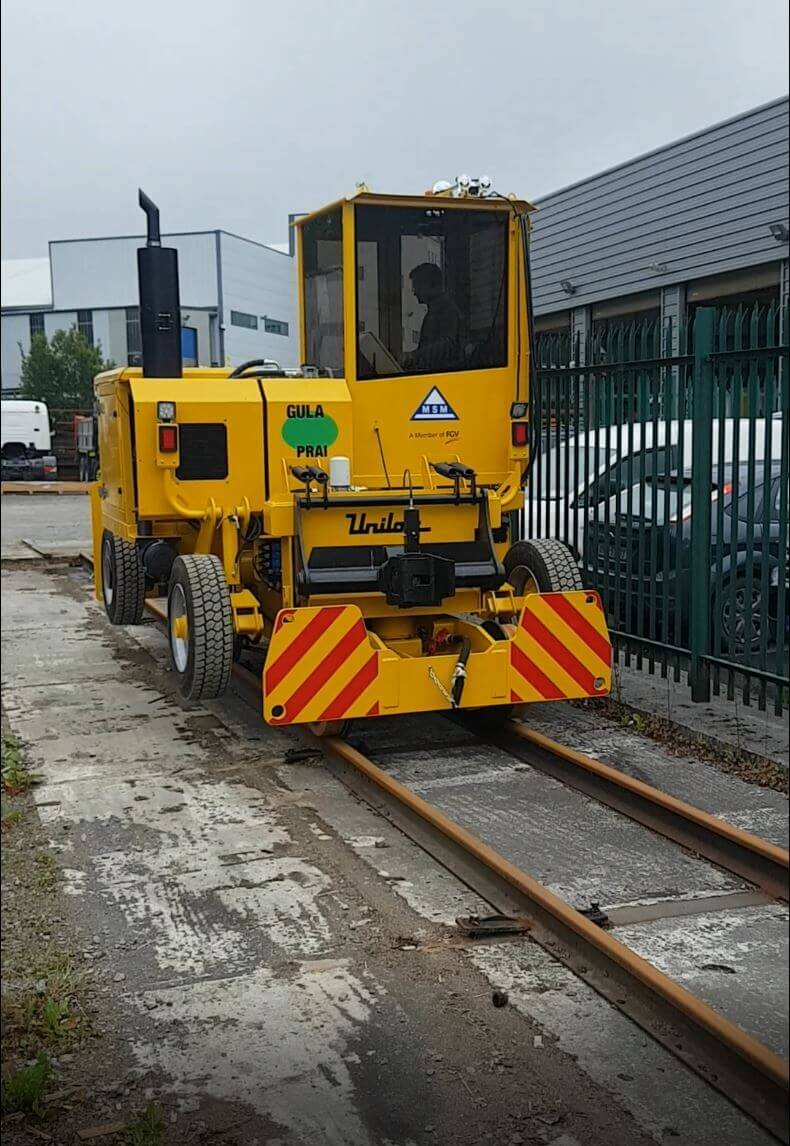

UNILOK E-115 Tracktronic Weight Transfer Shunter
This machine has the versatility of a light machine on the road with the pulling power of a shunter four times its weight on the rails. Utilising the Unilok weight transfer system, this shunter gives a high capacity pulling power of 1,000 tonnes.
Fitted with hydrostatic drive and tracktronic control it optimises the energy input versus power output giving best results. With wheel spin eliminated and power efficiency properly directed wagon loads of up to 1,000 tonnes can be moved.
Maximum Tractive Effort: 11,000 kg.
Machine Weight: 9,000 kg
Borrowed Weight : 6,500 kg
Transmission: Full automatic hydrostatic drive transmission. Process controlled anti-spin system for maximum traction.
Braking: Failsafe spring applied pressure released oil immersed disc brakes mounted on each wheel gearbox. Parking Brake on dead man’s switch. Separate Train airbrake high volume quick release system
Rail Gauge: All Rail gauges from 960mm to 1676mm
