Advanced Design Road/Rail Shunter

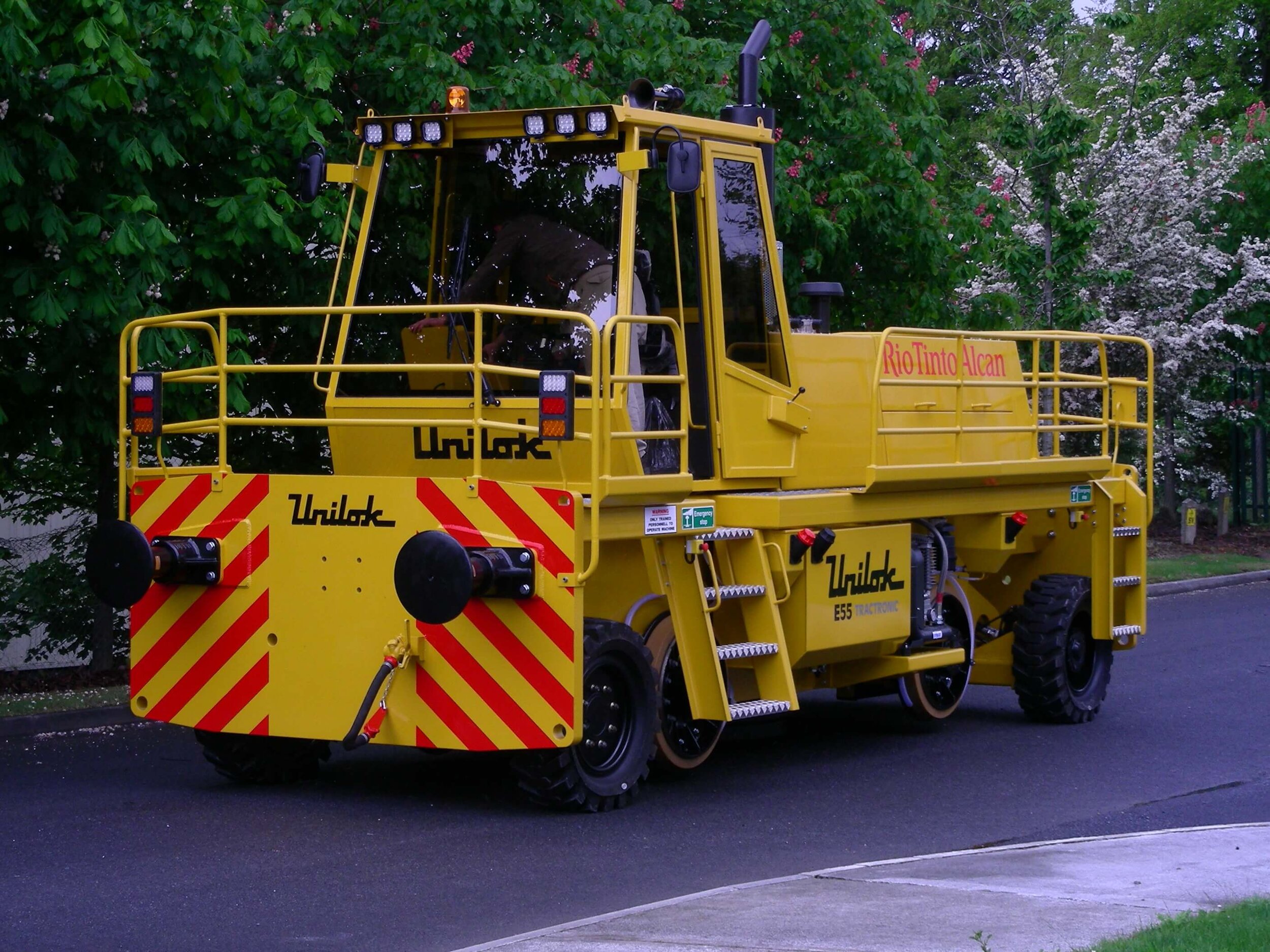

The  E-55s Tracktronic Shunter is one of the most advanced Road/Rail Wagon Movers on the world market today. The king of the Unilok range for many years now providing accurate shunting for all types of loads and applications. With add on’s like turntable, remote control and multiple attachments this is the ultimate shunter. It incorporates leading edge technology with proven reliability to provide peak efficiency in moving heavy loads on rail. Special polyeurethane rail wheels are fitted which provide a traction coefficient of more than 2.5 times steel on steel.

Maximum Tractive Effort:

12,500 kg

Weight:

17,500 kg

Engine:

Deutz BF6M 2012C water cooled diesel engine.
140kW (190 hp), 743Nm @1500rpm

Transmission:

Full automatic hydrostatic drive transmission
Process controlled antispin system for maximum traction.
Tracktronic speed control with inching function.

Braking:

Failsafe spring applied pressure released oil immersed disc brakes mounted on each wheel gearbox.
Parking Brake on deadman’s switch.
Separate Train airbrake high volume quick release system.

Rail Gauge:

All rail gauges from 960mm to 1,676mm.
